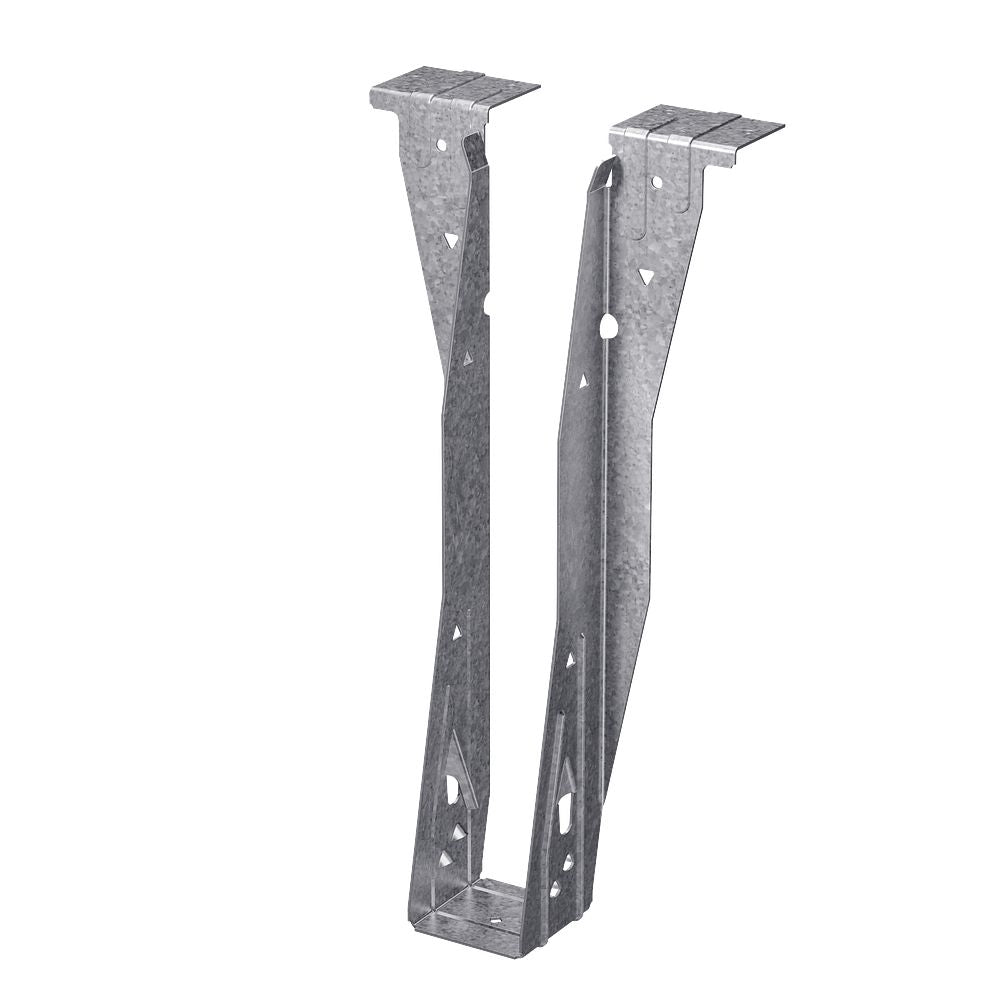

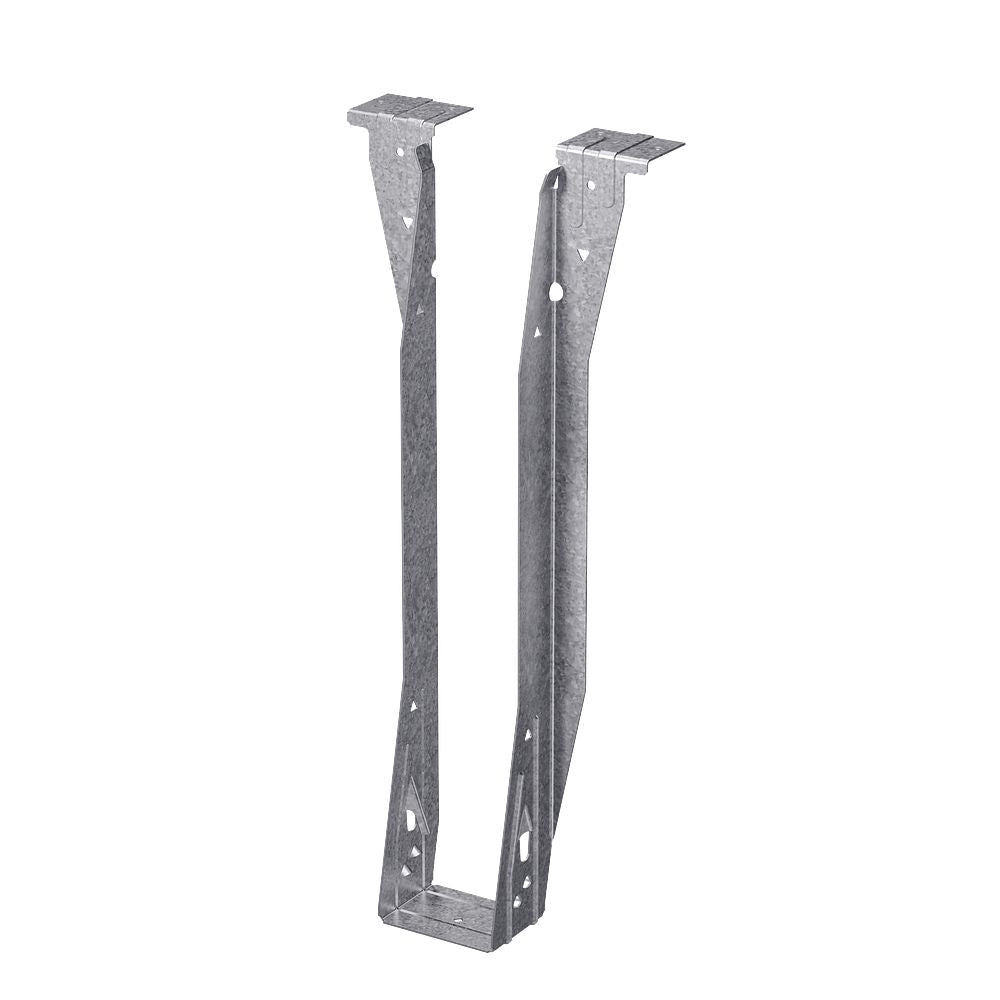

Simpson Strong ITS I-Joist Top-Flange Hanger with Snap-In Bottom Flange

Simpson Strong-Tie

Options

The innovative ITS is designed to support 90° connections of I-joists to headers. This top-flange hanger features the Strong-Grip^™ seat and Funnel Flange^™ design allowing standard joist installation without the use of joist nails, resulting in the lowest installed cost.

Key Features

Cost-effective hanger that installs quickly with a small number of nails
Features additional triangle holes for additional uplift
Features optional fastening with PAT for steel applications/header

Material

18 gauge

Finish

Galvanized

Installation

Use all specified fasteners. Verify that the header can take the required fasteners specified in the table.
See product-specific installation drawings.
No joist nailing required for standard I-joist installation without web stiffeners. When hanger is used to support I-joists with web stiffeners or rectangular SCL member (2) 0.148" x 1 1/2" nails must be installed into optional triangle joist nail holes for standard installation values.
Optional triangle nail holes may be used for additional load. See allowable load tables.
For sloped joists up to 1/4:12, there’s no reduction; from 1/4:12 up to 1/2:12, tests show a 10% reduction in ultimate hanger strength. Local crushing of the bottom flange or excessive deflection may be limiting; check with joist manufacturer for specific limitations on bearing of this type.

Allowable Loads

Locations are provided for optional nails if additional uplift is needed. Optional uplift nailing requires the addition of properly-secured web stiffeners. See the load tables for minimum required fasteners and allowable uplift loads.
For attaching to multi-ply headers, refer to technical bulletin Top-Flange Hanger Reductions for Multiple-Ply Headers (T-C-MPLYHEADR).
